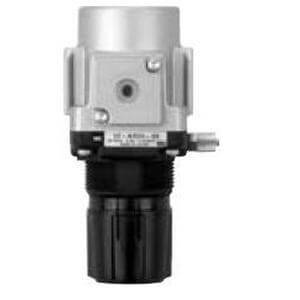

10/21-AR20-60, Modular Style Regulator, Special Applications
Clean series 10-AR regulators have fluorine grease, are assembled and inspected in a workshop, and have clean packaging (products are sealed in anti-static double bags after the surface has been blown with clean air). The 10-AR series has a particle generation grade of 1, and is available with port sizes from 1/8 to 1 (Rc, G or NPT threads).
How to order
Series AR K-B
10-
21-
Regulator
Series AR-B
Regulator with
Backflow Function
10-
21-
How to Order
K F10 AR B30 03 BG 1N
K F21 AR B30 03 BG 1N
Clean series
Copper, fluorine and silicone-free +
Low particle generation
Regulator
q r t yw e
• Option/Semi-standard: Select one each for a to g.
• Option/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order.
+
+
+
Symbol
Nil
K
Note 1)
Nil
B
Note 3)
H
With backflow
function
Mounting
w
Nil
N
F
Thread type
e
Description
Without backflow function
With backflow function
Rc
NPT
G
1/8
1/4
3/8
1/2
3/4
1
01
02
03
04
06
10
Port size
r
t
Option
Note 2)
a
Without mounting option
With bracket
With set nut (for panel mounting)
Body size
20 30 40 50 6025
+
Nil
G
Pressure
gauge
b
Without pressure gauge
Round type pressure gauge (without limit indicator)
+
y
Nil
1
Note 4)
Set pressure
c
0.05 to 0.85 MPa setting
0.02 to 0.2 MPa setting
+
Nil
N
Exhaust
mechanism
d
Relieving type
Non-relieving type
+
Nil
R
Flow direction
e
Flow direction: Left to right
Flow direction: Right to left
+
Nil
Y
Knob
f
Downward
Upward
+
Nil
Z
Note 5)
Pressure unit
g
Name plate and pressure gauge in imperial units: MPa
Name plate: psi, Pressure gauge: Both MPa and psi
q
Note 1) When using a non-relieving type with a backflow function, if the inlet pressure is increased slowly, the inlet pressure may continue to the outlet side.
Note 2) Option B, G, H are not assembled and supplied loose at the time of shipment.
Note 3) Assembly of a bracket and set nuts (10-/21-AR20(K)-B to AR40(K)-B)
Including 2 mounting screws for the 10-/21-AR50(K)-B, AR60(K)-B
Note 4) The only difference from the standard specifications is the adjusting spring for the regulator. It does not restrict the setting of 0.2 MPa or more.
When the pressure gauge is attached, a 0.2 MPa pressure gauge will be fitted.
Note 5) For thread type: NPT. This product is for overseas use only according to the new Measurement Law. (The SI unit type is provided for use in Japan.)
Note 6)
: For thread type: NPT only
Note 6)
Note 6)Note 6)Note 6)Note 6)Note 6)
Semi-standard
1075
A
