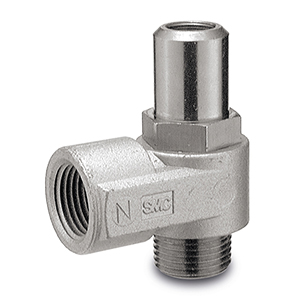

AS-D, Speed Controller, Metal Body Elbow Style, Flat Head Screwdriver Adjusting
Lightweight, compact, and precision control make these speed controls the right choice for many heavy-duty applications. These speed controls are offered with in-line and elbow construction to give the widest choice to your unique application. Locking nuts are included as standard as well as simplified mounting. Thread sizes range from M3 to 2 and are available in both inch (NPT) and metric R/Rc(PT)
- Flow rate can be adjusted with a flat head screwdriver
- Prevents inadvertent manual operation
- Meter-out and meter-in types can be visually distinguished
by the flow direction symbol on the metal body - On standard models, all brass parts are electroless nickel plated
- Available in PT, NPT or G(PF) port sizes
How to order
Note) The flow rate characteristics are representative values.
Body size
M5 standard
1/8, 1/4 standard
3/8 standard
1/2 standard
1
2
3
4
Type
Elbow
Universal
2
3
Control
With One-touch fitting
Meter-out
Meter-in
0
1
M5 x 0.8
R 1/8
R 1/4
R 3/8
R 1/2
10-32 UNF
NPT 1/8
NPT 1/4
NPT 3/8
NPT 1/2
01
02
03
04
U10/32
N01
N02
N03
N04
M5
Port size
ø3.2
ø4
ø6
ø8
ø10
ø12
Metric size
Note)
For applicable tubing O.D. selection, refer to the Model on page 734.
∗Use ø1/8" tube.
04
06
08
10
12
23
Applicable tubing O.D.
Note)
∗
ø1/8"
ø5/32"
ø3/16"
ø1/4"
ø5/16"
ø3/8"
ø1/2"
Inch size
03
05
07
09
11
13
01
Type adjustable by flat head screwdriver
With seal
AS 2 2 1 1 F
01
06 S D
Made to Order
Refer to the below for details.
Lubricant: Vaseline
X12
Ex.) AS1201F-M5-23D-X12
Throttle Valve
(Without Check Valve)
X214
Ex.) AS1201F-M5-23D-X214
Note) Throttle valve is only compatible with the part no. of the meter-out type.
Grease-free (Seal: Fluorine Coated) +
Throttle Valve (Without Check Valve)
X21
Ex.) AS1201F-M5-23D-X21
How to Order
AS1F-D Series
Speed Controller Adjustable by Flat Head Screwdriver with One-touch Fitting
Elbow Type/Universal Type
Note) In the case that port size is either M5 or 10-32
UNF thread, it is not available with seal. Gasket is
provided as standard.
Made to Order
Note 1) Not particle-free
Note 2)
Throttle valve is only compatible with the part no. of the meter-out type.
Needle Valve/Flow Rate Characteristics
Flow rate (L/min (ANR))
Inlet pressure 0.5 MPa
Number of needle rotations
Flow rate (L/min (ANR))
Inlet pressure 0.5 MPa
Number of needle rotations
Flow rate (L/min (ANR))
Inlet pressure 0.5 MPa
Number of needle rotations
Flow rate (L/min (ANR))
Inlet pressure 0.5 MPa
Number of needle rotations
Flow rate (L/min (ANR))
Inlet pressure 0.5 MPa
Number of needle rotations
AS1201F, AS1211F
AS2201F-01, AS2211F-01
AS2201F-02, AS2211F-02
AS4201F, AS4211FAS3201F, AS3211F
735
AS-F
TMH
ASD
AS
AS-FE
KE
AS-FG
AS-FP
AS-FM
AS-D
AS-T
ASP
ASN
AQ
ASV
AK
VCHC
ASR
ASQ
AS-D
