U side
3
1 2
Stations
D side
SS0751
08 C4 C8
How to Order Manifold
S07
1 1 5
How to Order Valves
Stations
02
32
Note)
Stations
2 station
32 stations
Symbol
···
···
Cylinder port size
C2
C3
C4
N1
N3
Port size
With ø2 one-touch fitting
With ø3.2 one-touch fitting
With ø4 one-touch fitting
With ø1/8" one-touch fitting
With ø5/32" one-touch fitting
Metric
Inch
Symbol
Kit type
P, R port size
Nil
C6
C8
N7
N9
Port size
With ø8 one-touch fitting
Note)
With ø6 one-touch fitting
With ø8 one-touch fitting
With ø1/4" one-touch fitting
With ø5/16" one-touch fitting
Metric
Inch
Symbol
Voltage: 24 VDC
Base mounted plug-in
4-position dual 3-port (N.C. + N.C.)
[Exhaust center]
Type of actuation
1
2
A
B
C
4-position dual 3-port (N.O. + N.O.)
[Pressure center]
Specifications
2-position single
2-position double
4-position dual 3-port (N.C. + N.O.)
Symbol
Note) For symbol, refer to page 7.
Option
Nil
D
D0
Dl
K
Note 2)
R
Note 3)
S
Specifications
None
With DIN rail (Rail length: Standard)
Without DIN rail (With bracket)
With DIN rail Designated length (l: Station)
Special wiring specifications (Except double wiring)
External pilot
Built-in silencer
Symbol
Note 1)
When two or more options are specified, indicate them
alphabetically.
Example) -KRS
Note 2) Indicate the wiring specifications for mixed single and double
wirings.
Note 3) For details, refer to page 27.
∗ For manifold optional parts, refer to pages 26 and 27.
∗ For manifold exploded view, refer to page 29.
Communication
connector
Nil
A
Specifications
T-branch type
Straight type
Symbol
SI unit output polarity
Nil
N
Specifications
Positive common
Negative common
Symbol
SD0
SDQ2
SDQ3
SDV2
S kit
Without SI unit
CC-Link for 32 points
(EX180-SMJ3: Positive common (NPN), EX180-SMJ5: Negative common (PNP))
DeviceNet™ for 16 points
(EX180-SDN4: Positive common (NPN), EX180-SDN6: Negative common (PNP))
DeviceNet™ for 32 points
(EX180-SDN3: Positive common (NPN), EX180-SDN5: Negative common (PNP))
32 stations
16 stations
32 stations
32
16
32
Kit
type
Symbol
Specifications
(SI unit model)
1 to 16
stations
Standard
station
Max. number
of stations
for special
wiring
specifications
Max. number
of
solenoids
Note 1) The maximum number of stations is determined by
the total number of solenoids.
For mixed single and double wirings, enter “-K” to
the order code options.
Note 2) For the S0700 series, SI unit models EX180-SDN1,
EX180-SDN2, or EX180-SMJ1 cannot be selected
as S kit (SDQl, SDV2).
Function
Nil
R
Standard
External pilot
Note)
Specifications
Symbol
Note) Not compatible with dual 3-port valves.
S

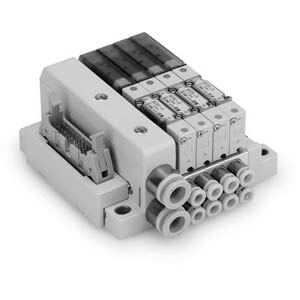

Series S0700 Slim Compact Plug-in Manifold Bar Base
kit (Serial Transmission)
EX180 (For Output) Serial Transmission System
Type of actuation
Number of solenoids
Single
1
Double, Dual 3-port
2
How to Order Manifold Assembly
<Example>
Serial transmission kit
1 set – Manifold base part no.
3 sets – Valve part no. (Stations 1 to 3)
2 sets – Valve part no. (Stations 4 to 5)
2 sets – Valve part no. (Stations 6 to 7)
1 sets – Blanking plate part no. (Station 8)
Prefix the asterisk to
the part nos. of the
solenoid valve, etc.
Write sequentially from the 1st
station on the D side.
When part nos. written
collectively are complicated,
specify on the manifold
specification sheet.
SS0751-08C4C8SDQ2 ···
∗ S0711-5 ·························
∗ S0721-5 ·························
∗ S07A1-5 ························
∗ SS0700-10A-3 ··············
Note) The maximum number of stations will
be different depending on the wiring
specifications.
Note) The cylinder port is ø5/16" when measured in inches.
Specify the part numbers for valves and options
together beneath the manifold base part number.
Refer to Reduced Wiring Fieldbus System (Serial
Transmission) in Electric Products (CAT. E150) for
details on the EX180 Integrated-type (For Output)
Serial Transmission System.
