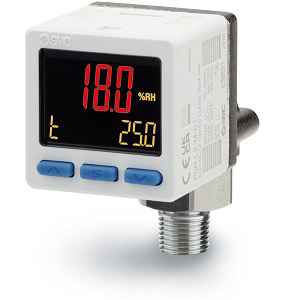

PSH Condensation Checker

  • PSH Condensation Checker

The PSH Condensation Checker monitors temperature and moisture in a compressed air or non-corrosive gas supply line.  The sensor identifies whether damaging condensation is a risk to the connected equipment.  The detected results are displayed as percent relative humidity and temperature values. Both values can be displayed simultaneously if desired.  The sensor can also respond to the detected values with display color changes and digital switch, outputs, signaling whether the values are within or outside the setpoint ranges. Values can be read and settings changed directly at the sensor, or remotely through analog voltage or IO-Link.  The enclosure is IP65 rated and meets CE and RoHS standards.

  • Rated pressure range: 0.3~1 MPa
  • Operating pressure: ≤ 1 MPa
  • Display units: %R.H. and °C
  • Port size: 1/8 Rc
  • Power supply: 18~30 VDC
  • Output signal: 1-5 VDC (analog option) or IO-Link (option)
  • Display accuracy: ±3°C (temperature), ±5% R.H.
Catalog Series Catalog
Online or Call Click Here to Order
Catalog Series Catalog
Configuration Options


Click Here to Order
Compliance: ______
Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Output Specification Configuration Status
Units specification Configuration Status
Piping Specification Configuration Status
Option 1 Configuration Status
Option 2 Configuration Status
Option 3 Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
